• (4) air registers w/positive shut-off
• Accessory delay
• Air conditioning
• Auxiliary pwr point
• Color-keyed carpet full-floor covering
• Color-keyed door trim panel-inc: soft armrest, grab handle, reflector, molded upper applique, upper & lower map pockets
• Color-keyed instrument panel-inc: dual cupholders, glove box, ashtray, cigar lighter, storage bin, trash bag hook
• Color-keyed molded cloth headliner
• Color-keyed scuff plates
• Door operated dome lamp w/time delay off & IP switch
• Driver & front passenger grab handles
• Driver & front passenger manual lumbar support
• Dual color-keyed cloth sunvisors-inc: driver-side map strap, passenger-side mirror insert
• Dual color-keyed coat hooks
• Dual front/rear map lights
• FlexFold 60/40 split bench rear seat w/fold-flat feature, grocery hooks, steel load floor, dual integrated cupholders & tray, dual outboard head restraints
• Front/rear color-keyed carpeted floor mats
• Grab handles mounted over rear doors
• High series cloth 40/20/40 split front bench seat-inc: armrest, cupholders, storage
• Premium AM/FM stereo radio w/CD player-inc: digital clock, (4) speakers
• Pwr door locks w/backlit switches
• Pwr windows w/driver one-touch-down & backlit switches
• Speed control
• Storage provisions-inc: behind seat storage trays
• Tilt steering wheel w/speed controls

• (2) front tow hooks
• 10800# GVWR, 4200# max payload
• 115-amp HD alternator
• 156" WB
• 18" chrome steel wheels w/bright center ornaments
• 2-speed transfer case w/manual locking front hubs
• 2-ton mechanical jack
• 29 gallon fuel tank
• 3.73 axle ratio
• 4-wheel anti-lock braking system (ABS)
• 4-wheel drive
• 6-3/4' pickup box-inc: (4) tie-down hooks, partitionable & stackable storage
• 72 amp/hr (650 CCA) battery
• Front stabilizer bar
• Full-floating rear axle
• Full-size spare tire & wheel w/lock
• HD shock absorbers
• LT275/70R18E BSW all-season tires
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes
• Pwr steering w/steering damper
• Rear auxiliary springs
• Trailer tow pkg-inc: 7-wire harness w/relays, 7/4-pin trailer combination connector, trailer brake wiring kit w/o controller

• 4-wheel anti-lock braking system (ABS)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• BlockerBeam frontal crash protection system
• Color-keyed safety belts w/front seat height adjustable D-rings
• Driver & front passenger airbags
• Front/rear child seat tethers (on all passenger seats)

6.0L DI V8 TURBO-DIESEL "POWER STROKE" ENGINE

• 110-amp HD alternator
• Dual 750-CCA battery
• turbo boost gauge
• air filter minder

• Cloth Seats

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 110
• Maximum Alternator Capacity (amps): HD 115
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 7000
• Curb Weight - Front (lbs): 4384
• Curb Weight - Front (lbs): 3749
• Curb Weight - Rear (lbs): 2787
• Curb Weight - Rear (lbs): 2748
• Gross Vehicle Weight Rating Cap (lbs): 10800
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1250
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 810
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 810
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4000
• Spring Capacity - Rear (lbs): 7000
• Axle Type - Front: Dana Monobeam
• Axle Type - Rear: Ford Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TJB
• Rear Tire Order Code: TJB
• Spare Tire Order Code: TJB
• Front Tire Size: LT275/70R18E
• Rear Tire Size: LT275/70R18E
• Spare Tire Size: LT275/70R18E
• Front Tire Capacity (lbs): 3640
• Rear Tire Capacity (lbs): 3640
• Spare Tire Capacity (lbs): 3640
• Revolutions/Mile @ 45 mph - Front: 627
• Revolutions/Mile @ 45 mph - Rear: 627
• Revolutions/Mile @ 45 mph - Spare: 627
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder-Type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 29
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 245.6
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 81.8
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 153.6
• Cab to Axle (in): 56.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 82.4
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 60.6
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 64.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 40.8
• Second Leg Room (in): 41.7
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

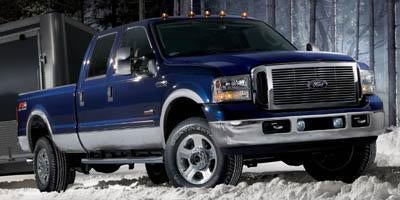

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
